Images are arrays

A picture is a matrix#

For a computer, a grayscale image of height \(H\) and width \(W\) is an \(H \times W\) matrix: element \((i, j)\) — row \(i\), column \(j\) — is the brightness of that pixel, usually an integer between 0 (black) and 255 (white). A colour image adds a third axis with one plane per channel, giving an \(H \times W \times 3\) array.

That is the whole secret: every algorithm in this course is "just" arithmetic on these arrays. So before touching an image, we need to be fluent with NumPy.

Data types: the bug factory#

Images are almost always stored as uint8: unsigned 8-bit integers, from 0 to 255. Arithmetic on uint8 wraps around silently:

a = np.full((2, 2), 255, dtype=np.uint8)
b = np.full((2, 2), 255, dtype=np.uint16)
print("uint8  255 + 1 ->", (a + 1)[0, 0])          # wraps around to 0
print("uint16 255 + 1 ->", (b + 1)[0, 0])          # 256, fits in 16 bits
print("cv2.add saturates ->", cv2.add(a, 1)[0, 0])  # stays at 255
print("safe NumPy sum ->", (a.astype(np.int32) + 1)[0, 0])

uint8  255 + 1 -> 0
uint16 255 + 1 -> 256
cv2.add saturates -> 255
safe NumPy sum -> 256

255 + 1 gives 0: a white pixel becomes black. This is why so many first attempts at "increase the brightness" produce strange black spots. Three ways out:

Masks: the end of nested loops#

A mask is a boolean array with the same shape as the image. Indexing with it selects (or writes) only the pixels where it is True:

A = np.random.randint(0, 10, (5, 5))
mask = A < 5                 # boolean matrix, same shape as A
print(A[mask])               # 1-D array with the selected values

B = A.copy()
B[A < 5] = 0                 # write through a mask
B[(A % 2).astype(bool)] -= 1  # odd values minus one
in_range = np.logical_and(A > 4, A < 7)
print(B, in_range, sep="\n")

A[mask] returns a 1-D array of the selected values, and B[A < 5] = 0 writes zero exactly where the condition holds. Combine conditions with &, |, ~ or np.logical_and/or/xor. Masks are how we will express thresholding, segmentation and filtering without writing for i in range(h): for j in range(w): — which is about 1000× slower in Python.

Reading an image with OpenCV#

gray = U.imread("basics/cameraman.tif", cv2.IMREAD_GRAYSCALE)  # flag 0
color = U.imread("basics/rouen.jpg")                            # flag 1, BGR!

print("gray :", gray.shape, gray.dtype)    # (256, 256) uint8
print("color:", color.shape, color.dtype)  # (576, 800, 3) uint8
print("pixel (50, 100):", gray[50, 100])   # row 50, column 100
b, g, r = color[0, 0]                      # first pixel, in B, G, R order

The second argument of cv2.imread selects the mode: cv2.IMREAD_GRAYSCALE (0), cv2.IMREAD_COLOR (1, the default) or cv2.IMREAD_UNCHANGED (-1, keeps 16-bit depth and the alpha channel). Two traps:

• cv2.imread returns None instead of raising an error when the path is wrong. The course helper U.imread raises a clear FileNotFoundError instead.
• img.shape is (height, width, channels), but most OpenCV functions that take a size want (width, height). And pixel access is img[row, col] — that is img[y, x] — while drawing functions take points as (x, y).

BGR, not RGB#

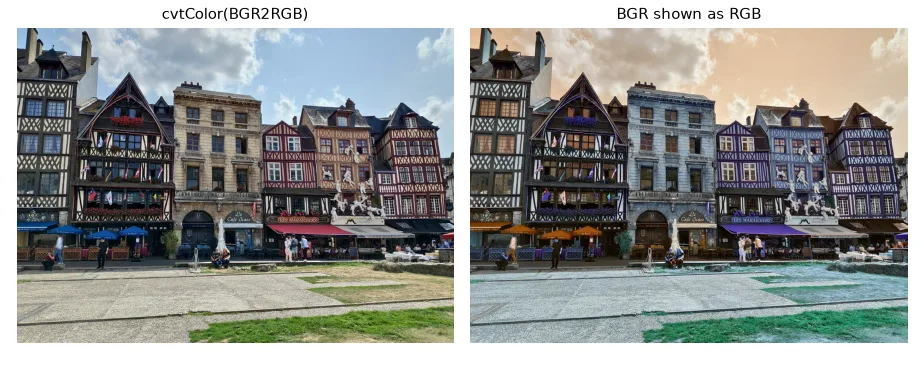

For historical reasons OpenCV loads colour images with the channels in Blue, Green, Red order. Matplotlib (and almost everything else) expects RGB. Forget the conversion and your sky turns orange:

wrong = color[:, :, ::-1]   # what Matplotlib "sees" if we forget the conversion
rgb = cv2.cvtColor(color, cv2.COLOR_BGR2RGB)

Channels#

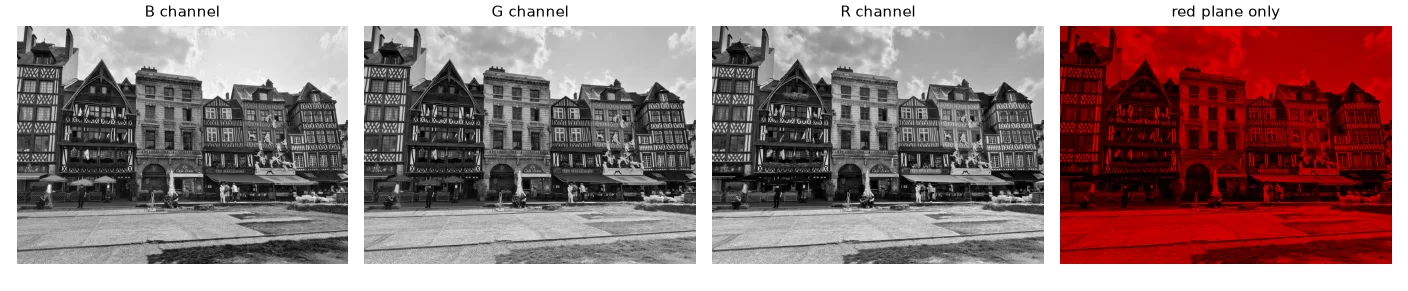

blue, green, red = cv2.split(color)
only_red = color.copy()
only_red[:, :, 0:2] = 0     # zero the B and G planes

From colour to gray#

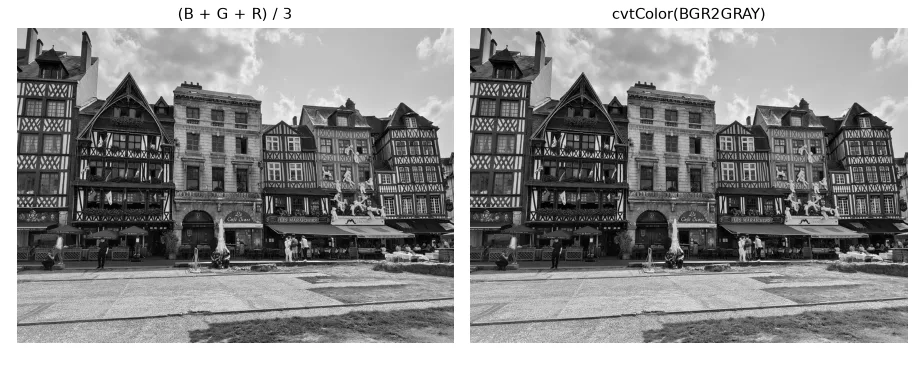

The naive gray level is the mean of the three channels, but our eyes are much more sensitive to green than to blue. The standard (ITU-R BT.601) luma weights them:

f = color.astype(np.float32)
gray_mean = (f[:, :, 0] + f[:, :, 1] + f[:, :, 2]) / 3
# ITU-R BT.601 luma: the eye is most sensitive to green, least to blue
gray_luma = 0.114 * f[:, :, 0] + 0.587 * f[:, :, 1] + 0.299 * f[:, :, 2]
gray_cv = cv2.cvtColor(color, cv2.COLOR_BGR2GRAY)
print("max |luma - cv2|:", np.abs(gray_luma - gray_cv).max())  # < 1, just rounding

cvtColor(…, COLOR_BGR2GRAY) uses exactly these weights — our manual version differs by at most 0.5, which is just rounding. Note the result types: the manual one is float32, OpenCV's is uint8.

Regions of interest and drawing#

Slicing returns a view: no data is copied, and writing into the slice writes into the original image. Use .copy() when you want an independent crop.

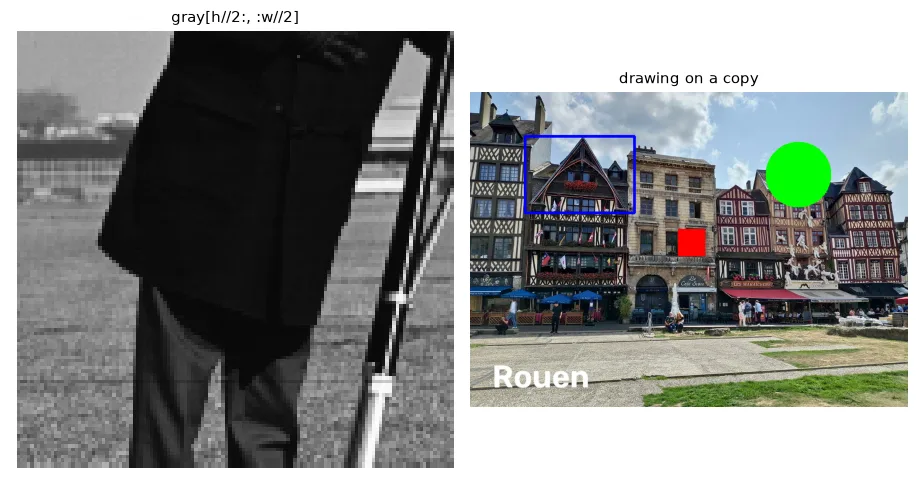

h, w = gray.shape
quarter = gray[h // 2:, : w // 2]     # bottom-left quarter: a *view*, no copy
quarter_copy = gray[h // 2:, : w // 2].copy()

canvas = color.copy()
canvas[250:300, 380:430] = (0, 0, 255)  # paint a red square (BGR)
cv2.rectangle(canvas, (100, 80), (300, 220), (255, 0, 0), 4)
cv2.circle(canvas, (600, 150), 60, (0, 255, 0), -1)
cv2.putText(canvas, "Rouen", (40, 540), cv2.FONT_HERSHEY_SIMPLEX, 2, (255, 255, 255), 4)

Synthetic images, blending and simple transforms#

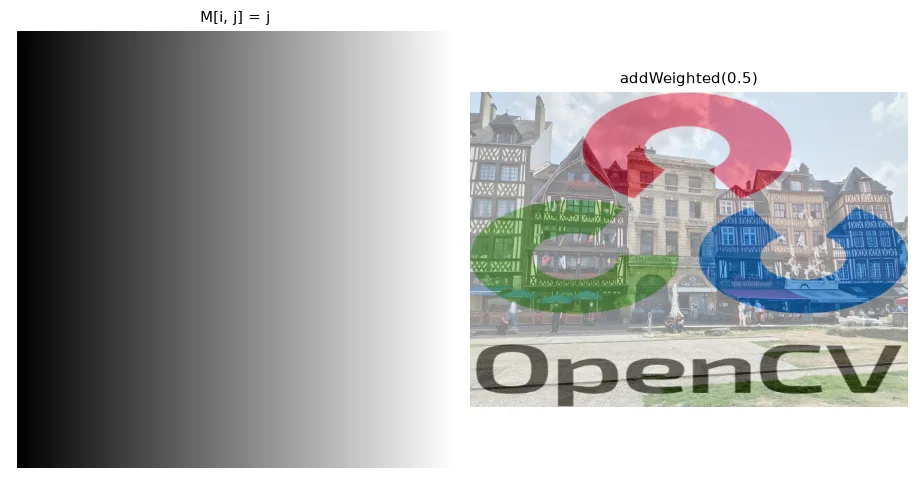

ramp = np.tile(np.arange(256, dtype=np.uint8), (256, 1))  # M[i, j] = j

logo = U.imread("basics/logo_color.png")
logo = cv2.resize(logo, (color.shape[1], color.shape[0]))
alpha = 0.5
blend_np = (alpha * color + (1 - alpha) * logo).astype(np.uint8)  # float math, then cast
blend_cv = cv2.addWeighted(color, alpha, logo, 1 - alpha, 0)

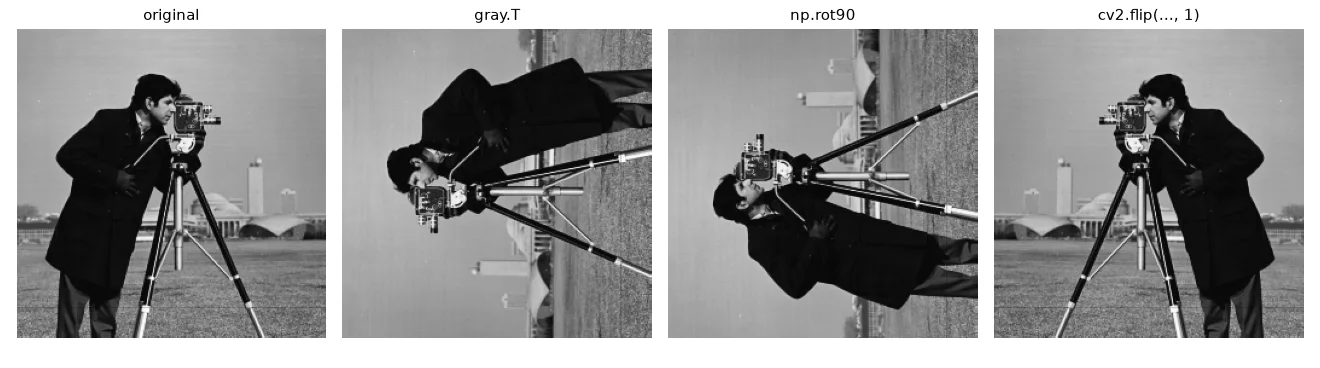

transposed = gray.T            # rows become columns
rot90 = np.rot90(gray)         # counter-clockwise rotation
flipped = cv2.flip(gray, 1)    # mirror around the vertical axis

Exercises#

1. Write brightness(img, delta) with plain NumPy that does not wrap around. Compare with cv2.add.
2. Using only masks, set to white every pixel of rouen.jpg whose red channel is larger than both the green and the blue channels. What did you select?
3. Time gray[i, j] in a double loop against gray_cv for the whole image (time.perf_counter). How many times faster is the vectorised version?
