03 · Geometric transforms · Computer Vision Course

Rotating a point#

Rotating the point $\mathbf{p} = (x, y)$ by an angle $\theta$ around the origin is a matrix product:

\[\begin{bmatrix} x' \\ y' \end{bmatrix} = \begin{bmatrix} \cos\theta & -\sin\theta \\ \sin\theta & \cos\theta \end{bmatrix} \begin{bmatrix} x \\ y \end{bmatrix}\]

def rotation(theta):
    c, s = np.cos(theta), np.sin(theta)
    return np.array([[c, -s],
                     [s, c]])


p = np.array([2, 4])
p_rot = rotation(np.pi / 2) @ p
print(p, "->", p_rot.round(3))   # [2 4] -> [-4. 2.]

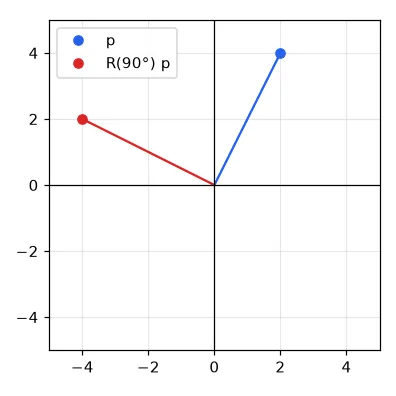

$(2, 4)$ rotated by 90° becomes $(-4, 2)$.

Homogeneous coordinates#

Scaling and rotation are matrix products, but translation is an addition — which breaks the nice "one matrix per transform" story. The trick is to add a coordinate: the 2-D point $(x, y)$ becomes $(x, y, 1)$, and every transform becomes a $3 \times 3$ matrix:

\[T = \begin{bmatrix} 1 & 0 & t_x \\ 0 & 1 & t_y \\ 0 & 0 & 1 \end{bmatrix},\quad R = \begin{bmatrix} \cos\theta & -\sin\theta & 0 \\ \sin\theta & \cos\theta & 0 \\ 0 & 0 & 1 \end{bmatrix},\quad S = \begin{bmatrix} s_x & 0 & 0 \\ 0 & s_y & 0 \\ 0 & 0 & 1 \end{bmatrix}\]

Chaining transforms is now multiplying matrices — read from right to left: $M = T\,R\,S$ scales first, then rotates, then translates. Undoing everything is np.linalg.inv(M).

def T(tx, ty):
    return np.array([[1, 0, tx], [0, 1, ty], [0, 0, 1]], float)


def R(theta):
    c, s = np.cos(theta), np.sin(theta)
    return np.array([[c, -s, 0], [s, c, 0], [0, 0, 1]])


def S(sx, sy):
    return np.array([[sx, 0, 0], [0, sy, 0], [0, 0, 1]], float)


M = T(1.5, 2.3) @ R(np.pi / 2) @ S(1, 1)      # scale, then rotate, then translate
ph = np.array([2, 4, 1])                      # the point (2, 4) in homogeneous form
q = M @ ph
back = np.linalg.inv(M) @ q                   # the inverse undoes the whole chain
print(q[:2], back[:2])                        # [-2.5  4.3] [2. 4.]

# 3-D works the same way with 4x4 matrices: [[R, t], [0 0 0 1]]

To rotate an image around its centre instead of the top-left corner, sandwich the rotation: move the centre to the origin, rotate, move it back: $T(c)\,R\,T(-c)$. In 3-D the same idea gives the $4 \times 4$ matrices $\begin{bmatrix} R & \mathbf{t} \\ \mathbf{0}^\top & 1 \end{bmatrix}$ that we will use for camera poses in Part V.

Warping an image: forward or inverse?#

To transform an image we could take every source pixel and push it to $M\mathbf{p}$ (forward mapping). But when the image is enlarged or rotated, several destination pixels receive nothing — the result is full of holes.

The right way is inverse mapping: loop over the destination pixels and pull the value from $M^{-1}\mathbf{p}'$ in the source. Every output pixel gets exactly one value.

def warp_forward(img, A):
    """Push every source pixel to its destination: leaves holes."""
    out = np.zeros_like(img)
    ys, xs = np.mgrid[0:img.shape[0], 0:img.shape[1]]
    src = np.stack([xs.ravel(), ys.ravel(), np.ones(xs.size)])  # 3 x N, (x, y, 1)
    dst = A @ src
    xd, yd = np.round(dst[0]).astype(int), np.round(dst[1]).astype(int)
    ok = (xd >= 0) & (xd < img.shape[1]) & (yd >= 0) & (yd < img.shape[0])
    out[yd[ok], xd[ok]] = img[ys.ravel()[ok], xs.ravel()[ok]]
    return out

def warp_inverse(img, A, out_shape=None):
    """For every *destination* pixel, look up where it comes from (no holes)."""
    oh, ow = out_shape or img.shape[:2]
    A_inv = np.linalg.inv(A)
    ys, xs = np.mgrid[0:oh, 0:ow]
    dst = np.stack([xs.ravel(), ys.ravel(), np.ones(xs.size)])
    src = A_inv @ dst
    src = src[:2] / src[2]                      # divide by w (needed for perspective)
    xs_src, ys_src = np.round(src).astype(int)  # nearest neighbour lookup
    ok = (xs_src >= 0) & (xs_src < img.shape[1]) & (ys_src >= 0) & (ys_src < img.shape[0])
    out = np.zeros((oh, ow) + img.shape[2:], img.dtype)
    out.reshape(oh * ow, -1)[ok] = img[ys_src[ok], xs_src[ok]].reshape(ok.sum(), -1)
    return out

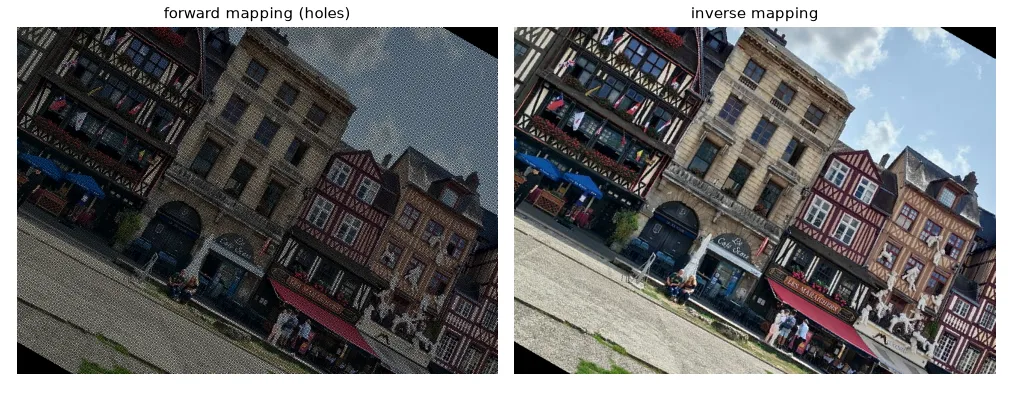

The same rotation + 1.4× zoom. Forward mapping (left) leaves a grid of black holes; inverse mapping (right) is complete.

The division src[:2] / src[2] does nothing for affine matrices (the last row is $[0, 0, 1]$, so $w = 1$) but is essential for perspective, below. Here we take the nearest source pixel; using bilinear interpolation (lesson 02) instead is what cv2.warpAffine does by default.

Affine transforms with OpenCV#

An affine transform keeps parallel lines parallel. It has 6 parameters — the top two rows of the $3 \times 3$ matrix — and OpenCV represents it as a $2 \times 3$ array.

M_rot = cv2.getRotationMatrix2D(center=(w / 2, h / 2), angle=45, scale=1.0)  # 2x3 matrix
rotated = cv2.warpAffine(img, M_rot, (w, h))

shear = np.float32([[1, 0.4, 0], [0, 1, 0]])
sheared = cv2.warpAffine(img, shear, (int(w * 1.4), h))

# an affine map is fully defined by 3 point correspondences
src_tri = np.float32([[0, 0], [w - 1, 0], [0, h - 1]])
dst_tri = np.float32([[0, h * 0.33], [w * 0.85, h * 0.25], [w * 0.15, h * 0.7]])
M_aff = cv2.getAffineTransform(src_tri, dst_tri)
affine = cv2.warpAffine(img, M_aff, (w, h))

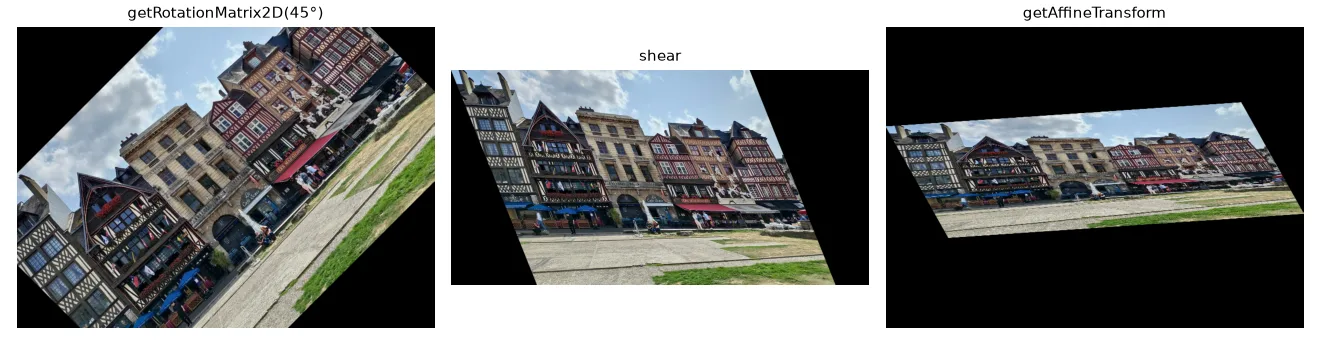

Rotation around the centre, a horizontal shear, and a general affine map defined by where three corners must go.

Since each point gives 2 equations, 3 point pairs define an affine map (getAffineTransform).

Perspective: the homography#

A camera looking at a plane at an angle does not preserve parallelism — the edges of a road meet at the horizon. The general projective map between two planes is a homography, a full $3 \times 3$ matrix $H$ defined up to scale (8 degrees of freedom):

\[\begin{bmatrix} x' w \\ y' w \\ w \end{bmatrix} = H \begin{bmatrix} x \\ y \\ 1 \end{bmatrix}, \qquad (x', y') = \left(\frac{x'w}{w}, \frac{y'w}{w}\right)\]

The division by $w$ is what makes far things small. Four point correspondences (no three collinear) determine $H$.

A classic use in mobile robotics is the bird's-eye view (inverse perspective mapping): pick four points that form a trapezoid on the road and declare that, seen from above, they form a rectangle.

road = U.imread("features/estrada.jpg")       # 500 x 281 road picture
# four points on the road surface (a trapezoid in the image)...
src = np.float32([[205, 160], [295, 160], [480, 280], [20, 280]])
# ...that are a rectangle when seen from above
dst = np.float32([[150, 0], [350, 0], [350, 500], [150, 500]])
H = cv2.getPerspectiveTransform(src, dst)     # 3x3 homography
top_view = cv2.warpPerspective(road, H, (500, 500))
top_view_mine = warp_inverse(road, H, (500, 500))

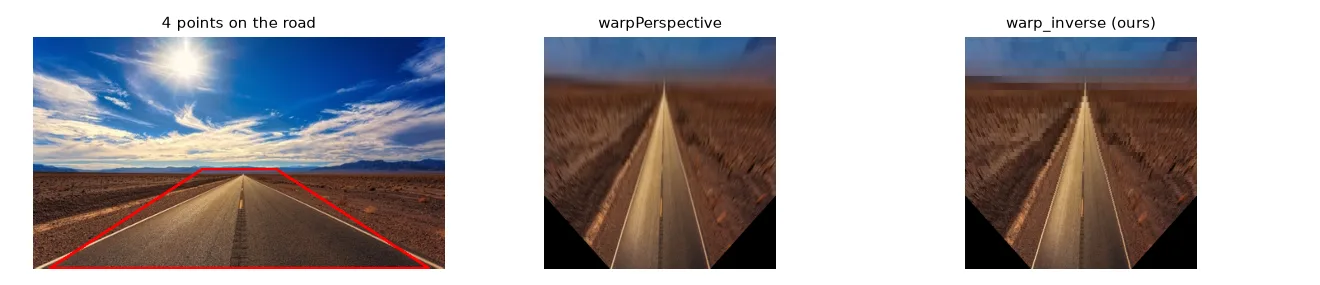

Four points on the road (left) mapped to a rectangle give a top view where lane lines are parallel. Our `warp_inverse` (right) produces the same geometry as OpenCV, only blockier because it uses nearest-neighbour lookup.

Lesson 13 shows how to estimate a homography from hundreds of noisy, partly wrong correspondences, instead of four hand-picked ones.

Which function?

cv2.warpAffine(img, M_2x3, (w, h)) for rotations, scalings and shears; cv2.warpPerspective(img, H_3x3, (w, h)) for homographies. Both use inverse mapping internally and take the output size as (width, height).

Exercises#

Write rotate_around(img, angle, center) with warp_inverse and compare with cv2.getRotationMatrix2D + cv2.warpAffine.
Rotate an image by 45° without cropping the corners: compute the size of the bounding box of the rotated image and add the needed translation to $M$.
Take a photo of a sheet of paper on a table, click its 4 corners and rectify it into an A4-shaped image ("document scanner").
