10 · Colour spaces and colour segmentation

Why other colour spaces?#

In RGB, all three channels mix what colour a pixel is with how bright it is. A dark blue and a light blue pencil are far apart in RGB, so "select the blue pixels" is not a simple box. Other colour spaces separate those two pieces of information.

CMYK: subtractive colour for printing#

Screens add light (RGB, starting from black); printers subtract it with inks (starting from white paper). Cyan absorbs red, magenta absorbs green, yellow absorbs blue. Since mixing the three inks to make black is expensive and muddy, a fourth black ink (K) takes over the common part. With \(r, g, b \in [0, 1]\):

\[k = 1 - \max(r, g, b), \qquad c = \frac{1 - r - k}{1 - k}, \quad m = \frac{1 - g - k}{1 - k}, \quad y = \frac{1 - b - k}{1 - k}\]

and back: \(r = (1 - c)(1 - k)\), and so on.

def rgb_to_cmyk(rgb):
    x = rgb.astype(np.float32) / 255
    k = 1 - x.max(axis=2)
    denom = np.where(k < 1, 1 - k, 1)                 # avoid 0/0 on pure black pixels
    c, m, y = [(1 - x[..., i] - k) / denom for i in range(3)]
    return np.dstack([c, m, y, k])                    # floats in [0, 1]


def cmyk_to_rgb(cmyk):
    c, m, y, k = np.moveaxis(cmyk, 2, 0)
    rgb = np.dstack([(1 - c) * (1 - k), (1 - m) * (1 - k), (1 - y) * (1 - k)])
    return np.round(rgb * 255).astype(np.uint8)

The round trip RGB → CMYK → RGB is exact (max error 0). OpenCV has no CMYK conversion — it is a printing concern.

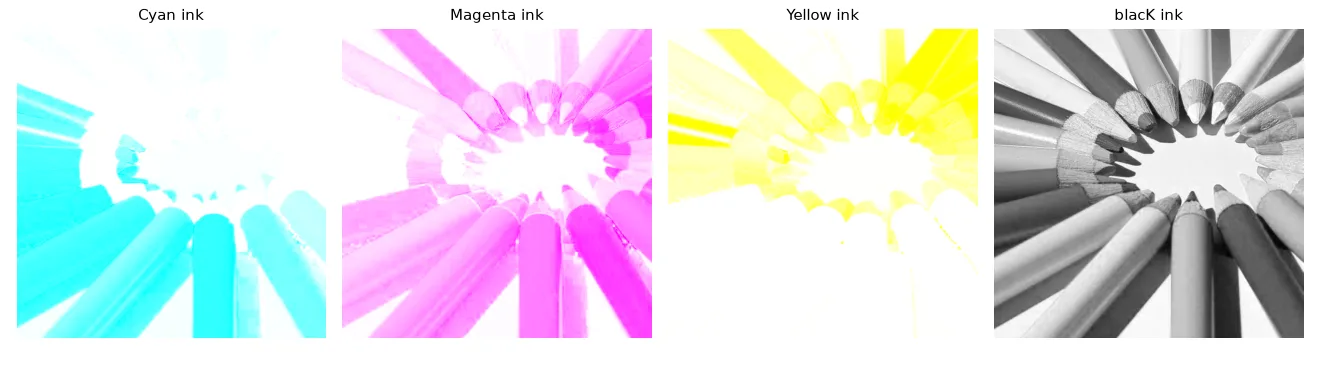

Each ink printed alone on white paper. Most of the dark shading goes to the K plate.

YUV: luma plus two colour differences#

YUV was designed in the 1950s so that colour TV could stay compatible with black-and-white sets: Y is exactly the gray image of lesson 01, and U, V carry the colour as differences from it.

\[Y = 0.299 R + 0.587 G + 0.114 B, \qquad U = 0.492\,(B - Y), \qquad V = 0.877\,(R - Y)\]

def rgb_to_yuv(rgb):
    x = rgb.astype(np.float32) / 255
    r, g, b = x[..., 0], x[..., 1], x[..., 2]
    y = 0.299 * r + 0.587 * g + 0.114 * b     # luma: what a black-and-white TV shows
    u = 0.492 * (b - y)                       # blue-difference chroma, in [-0.436, 0.436]
    v = 0.877 * (r - y)                       # red-difference chroma, in [-0.615, 0.615]
    return np.dstack([y, u, v])


def yuv_to_rgb(yuv):
    y, u, v = yuv[..., 0], yuv[..., 1], yuv[..., 2]
    r = y + 1.140 * v
    g = y - 0.395 * u - 0.581 * v
    b = y + 2.032 * u
    return np.clip(np.round(np.dstack([r, g, b]) * 255), 0, 255).astype(np.uint8)

\(U\) and \(V\) are signed (\(U \in [-0.44, 0.44]\), \(V \in [-0.62, 0.62]\)). OpenCV's COLOR_RGB2YUV stores them in uint8 with an offset of 128, so you cannot compare the two numbers directly — only after converting. Since the eye is less sensitive to colour detail than to brightness, video codecs store U and V at half resolution (4:2:0) — and you can barely tell.

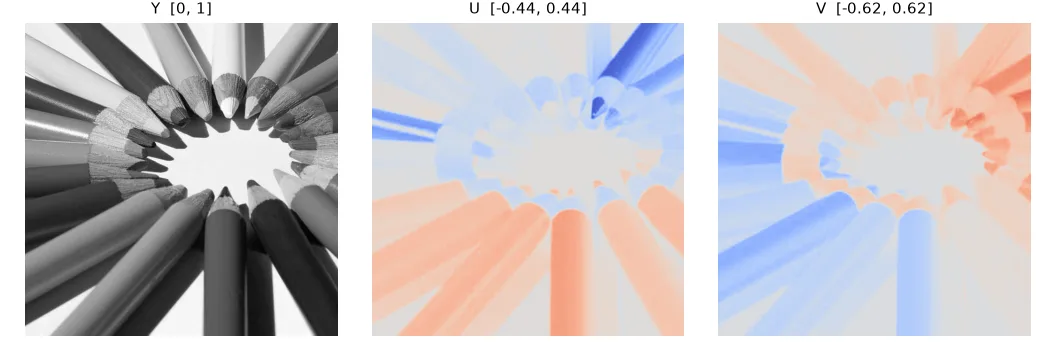

Y is the gray image. U is high on blue pencils, V on red/orange ones.

HSV: hue, saturation, value#

HSV is built for humans: H (hue) is the colour as an angle on the colour wheel, S (saturation) how pure it is, V (value) how bright. With \(M = \max(r, g, b)\), \(m = \min(r, g, b)\), \(\Delta = M - m\):

\[H = \begin{cases} 60° \cdot \frac{g - b}{\Delta} \bmod 360° & M = r \\ 60° \cdot \frac{b - r}{\Delta} + 120° & M = g \\ 60° \cdot \frac{r - g}{\Delta} + 240° & M = b \end{cases} \qquad S = \frac{\Delta}{M}, \qquad V = M\]

def rgb_to_hsv(rgb):
    """H in [0, 180) (degrees / 2, fits in uint8), S and V in [0, 255], like OpenCV."""
    x = rgb.astype(np.float32) / 255
    r, g, b = x[..., 0], x[..., 1], x[..., 2]
    mx, mn = x.max(axis=2), x.min(axis=2)
    delta = mx - mn
    safe = np.where(delta == 0, 1, delta)
    h = np.zeros_like(mx)
    h = np.where(mx == r, (60 * (g - b) / safe) % 360, h)
    h = np.where(mx == g, 60 * (b - r) / safe + 120, h)
    h = np.where(mx == b, 60 * (r - g) / safe + 240, h)
    h = np.where(delta == 0, 0, h)                         # gray: hue undefined, use 0
    s = np.where(mx == 0, 0, delta / np.where(mx == 0, 1, mx))
    return np.dstack([h / 2, s * 255, mx * 255]).round().astype(np.uint8)

In OpenCV's 8-bit HSV, H is divided by 2 (0–179) to fit in a byte, while S and V go to 255. Our version matches cv2.COLOR_BGR2HSV within 1 unit.

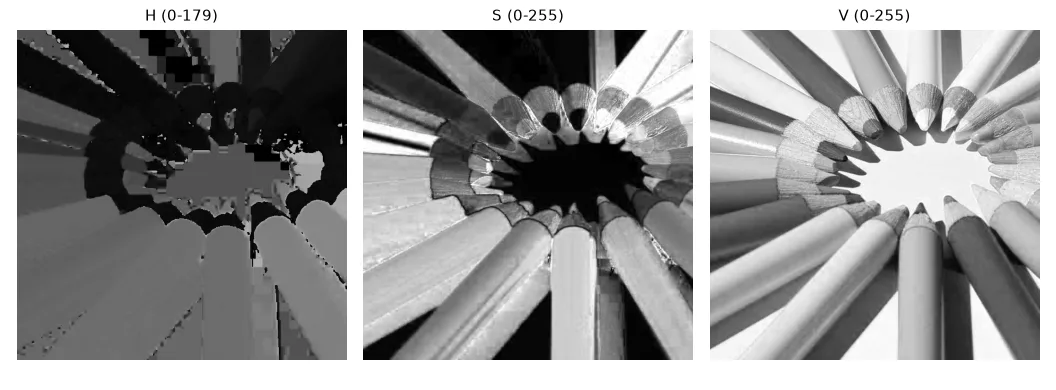

The H channel is (almost) constant along a pencil, despite shading — that is the point. Note how it jumps between ~0 and ~179 around red: hue is circular.

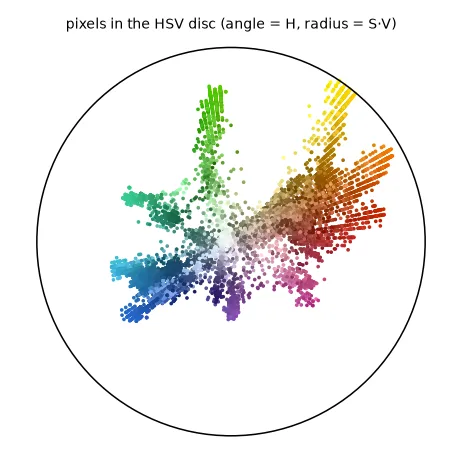

Each pixel placed at angle H and radius S·V. Pencils of the same colour form tight angular wedges, whatever their brightness.

Recolouring by hue#

Select a hue range with cv2.inRange, change H, keep S and V: the shading stays, so the result looks natural.

hsv = cv2.cvtColor(bgr, cv2.COLOR_BGR2HSV)
# Yellow sits in a narrow hue band (~35-65 degrees, i.e. 17-33 in OpenCV units),
# whatever its brightness. Saturation and value thresholds drop the white paper.
yellow = cv2.inRange(hsv, (18, 120, 100), (34, 255, 255))

recolored = hsv.copy()
recolored[..., 0][yellow > 0] = 60           # 120 degrees / 2: green. S and V untouched,
recolored = cv2.cvtColor(recolored, cv2.COLOR_HSV2BGR)  # so the shading still looks natural

rotated = hsv.copy()
rotated[..., 0] = (rotated[..., 0].astype(int) + 60) % 180   # rotate *every* hue by 120 degrees
rotated = cv2.cvtColor(rotated, cv2.COLOR_HSV2BGR)

# Red wraps around 0 degrees, so it needs two ranges:
red = cv2.inRange(hsv, (0, 120, 70), (8, 255, 255)) | cv2.inRange(hsv, (170, 120, 70), (179, 255, 255))

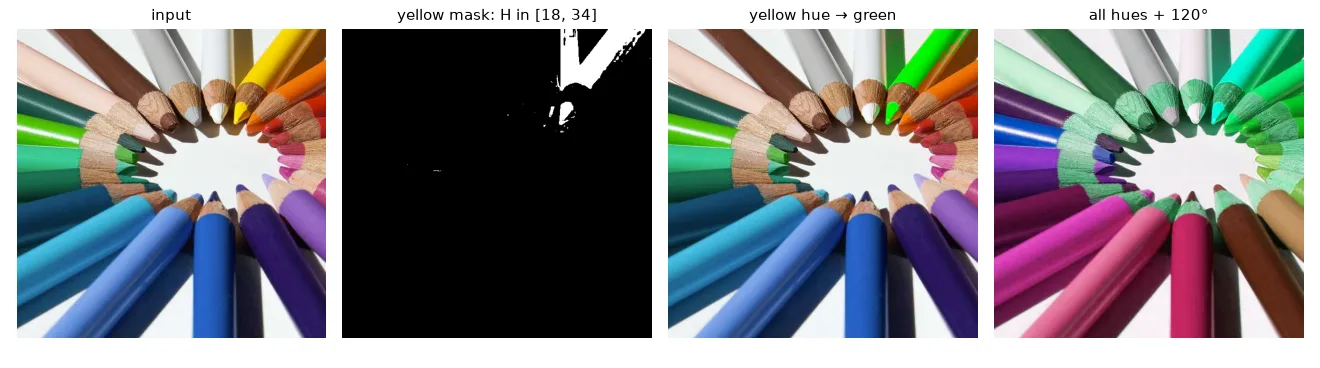

The yellow pencil becomes green. Rotating every hue by 120° recolours the whole image consistently.

Red wraps around

Red sits at both ends of the hue axis (0° and 360°, i.e. 0 and 179 in OpenCV). A red mask therefore needs two ranges combined with |. Also always constrain S and V: a white or black pixel has an undefined, meaningless hue.

Segment and locate an object#

This is the robotics version (my UFRN lecture tracked a toy car this way): segment the object by colour, then compute its centre of mass from the image moments \(m_{pq} = \sum_{x,y} x^p y^q\, I(x, y)\):

\[\bar x = \frac{m_{10}}{m_{00}}, \qquad \bar y = \frac{m_{01}}{m_{00}}\]

The car is pale (S ≈ 40) — hard to threshold. The background is a saturated red (S ≈ 135) — easy. So we segment the background and invert, keep the largest blob and fill its holes:

car = U.imread("color/toy_car.jpg")
car_hsv = cv2.cvtColor(car, cv2.COLOR_BGR2HSV)
# The pale car (S ~ 40) is hard to threshold, the saturated red background (S ~ 135) is easy:
# segment the background and invert.
background = cv2.inRange(car_hsv, (0, 80, 80), (12, 255, 255)) | \
             cv2.inRange(car_hsv, (168, 80, 80), (179, 255, 255))
mask = cv2.bitwise_not(background)
mask = cv2.morphologyEx(mask, cv2.MORPH_OPEN, np.ones((5, 5), np.uint8))

# keep the largest blob and fill its holes (windows, reflections)
n, labels, stats, _ = cv2.connectedComponentsWithStats(mask)
largest = 1 + np.argmax(stats[1:, cv2.CC_STAT_AREA])
mask = np.where(labels == largest, 255, 0).astype(np.uint8)
mask = cv2.morphologyEx(mask, cv2.MORPH_CLOSE, cv2.getStructuringElement(cv2.MORPH_ELLIPSE, (15, 15)))

m = cv2.moments(mask, binaryImage=True)
cx, cy = m["m10"] / m["m00"], m["m01"] / m["m00"]                   # centre of mass
x, y, w, h = cv2.boundingRect(mask)

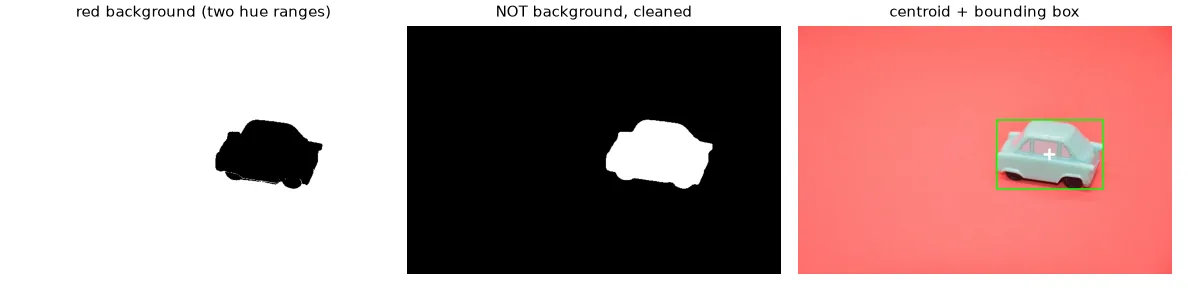

Segment what is easy, then invert. The cross is the centroid, the box comes from `cv2.boundingRect`. Running this on every frame of a video gives a simple colour tracker.

Exercises#

Plot the H histogram of crayons.jpg (only pixels with S > 100). Can you count the pencil colours from its peaks?
Recolour all blue pencils to orange (careful with the target hue in OpenCV units).
Convert to L*a*b* (cv2.COLOR_BGR2LAB) and segment the car with a threshold on the a* channel only. Compare with the HSV approach.
