09 · Mathematical morphology · Computer Vision Course

Shapes, not intensities#

Filters of lesson 05 compute weighted sums. Morphology asks set questions: does a small shape — the structuring element (SE, or kernel) — fit inside the white region at this position? Does it touch it? That makes it ideal for cleaning up binary images after a threshold, and for measuring shapes.

k_rect = cv2.getStructuringElement(cv2.MORPH_RECT, (5, 5))
k_ellipse = cv2.getStructuringElement(cv2.MORPH_ELLIPSE, (7, 7))
k_cross = cv2.getStructuringElement(cv2.MORPH_CROSS, (5, 5))
k_line = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 11))    # (width, height)
print(k_cross)

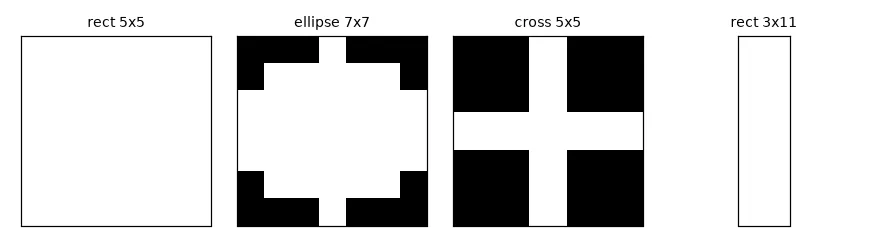

Structuring elements built with `cv2.getStructuringElement`. Note that the size is given as **(width, height)**.

Erosion and dilation#

With \(I\) the set of white pixels and \(K_x\) the kernel centred at \(x\):

\[\varepsilon_K(I) = \{\, x \mid K_x \subseteq I \,\} \qquad \delta_K(I) = \{\, x \mid \check K_x \cap I \neq \emptyset \,\}\]

Erosion keeps a pixel white only if the whole kernel fits in the white region: white objects shrink, white specks vanish. Dilation makes a pixel white if the (reflected) kernel touches any white pixel: objects grow, black holes fill.

A neat way to compute them: for every "on" cell \((d_y, d_x)\) of the kernel, shift the image by that offset; erosion is the AND of all the shifted copies, dilation is the OR.

def erode(img, k):
    """White at x only if the kernel, centred at x, fits entirely inside the white set."""
    b = img > 0
    kh, kw = k.shape[0] // 2, k.shape[1] // 2
    padded = np.pad(b, ((kh, kh), (kw, kw)), constant_values=True)
    out = np.ones_like(b)
    for dy, dx in zip(*np.nonzero(k)):              # AND of shifted copies, one per kernel cell
        out &= padded[dy:dy + b.shape[0], dx:dx + b.shape[1]]
    return out.astype(np.uint8) * 255


def dilate(img, k):
    """White at x if the (reflected) kernel centred at x touches the white set at all."""
    b = img > 0
    kh, kw = k.shape[0] // 2, k.shape[1] // 2
    padded = np.pad(b, ((kh, kh), (kw, kw)), constant_values=False)
    out = np.zeros_like(b)
    k_ref = k[::-1, ::-1]
    for dy, dx in zip(*np.nonzero(k_ref)):          # OR of shifted copies
        out |= padded[dy:dy + b.shape[0], dx:dx + b.shape[1]]
    return out.astype(np.uint8) * 255


def opening(img, k):          # erosion then dilation: removes small white specks
    return dilate(erode(img, k), k)


def closing(img, k):          # dilation then erosion: fills small black holes
    return erode(dilate(img, k), k)


def morph_gradient(img, k):   # dilation - erosion: the outline of every shape
    return cv2.subtract(dilate(img, k), erode(img, k))

All four operations are pixel-identical to cv2.erode, cv2.dilate and cv2.morphologyEx, which the script checks.

What went wrong in my first erosion

I wrote if not k.all() and window.all(). That ignores the kernel's shape (a cross or a disc has zeros in it) and only compares whole windows. The definition says: the window must be white wherever the kernel is 1 — window[k == 1].all().

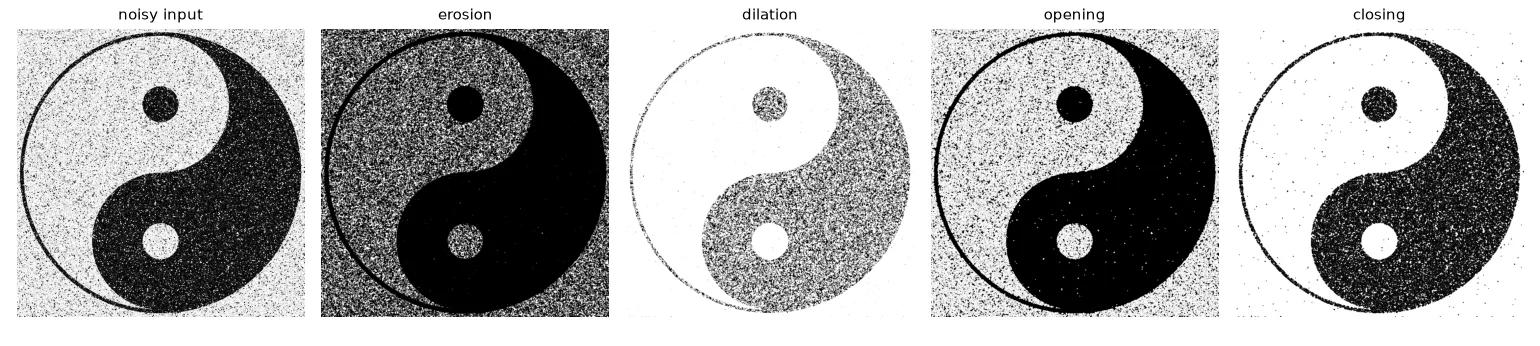

Erosion removes white specks but enlarges black ones; dilation does the opposite. Opening (erode, then dilate) and closing (dilate, then erode) restore the size of the big shapes while removing the small ones.

Operation	Definition	Effect on white objects
Opening	\(\delta(\varepsilon(I))\)	removes white parts smaller than the kernel
Closing	\(\varepsilon(\delta(I))\)	fills black holes and gaps smaller than the kernel
Gradient	\(\delta(I) - \varepsilon(I)\)	outlines of every shape
Top-hat / black-hat	\(I - \text{open}(I)\) / \(\text{close}(I) - I\)	small bright / dark details (lesson 05's barcode)

Cleaning very noisy shapes#

The yin-yang below has 14% of its pixels flipped. The obvious recipe — a big opening to remove the white specks, then a big closing for the black ones — fails: the white half is so riddled with black specks that the opening eats it. The solution is an alternating sequential filter: close and open with a growing kernel, so every step only has to deal with specks slightly larger than those already removed.

truth = np.where(U.imread("morphology/yin_yang.png", cv2.IMREAD_GRAYSCALE) > 127, 255, 0).astype(np.uint8)


def error(img):
    return 100 * np.mean(img != truth)                     # % of wrong pixels


def ellipse(k):
    return cv2.getStructuringElement(cv2.MORPH_ELLIPSE, (k, k))


# One big opening followed by one big closing: the opening erases the white half too,
# because it is riddled with black specks (13% of its pixels).
naive = cv2.morphologyEx(cv2.morphologyEx(noisy, cv2.MORPH_OPEN, ellipse(7)), cv2.MORPH_CLOSE, ellipse(7))

# Alternating sequential filter: close/open with *growing* kernels, so each step only
# has to remove specks slightly bigger than the ones already gone.
asf = noisy
for k in (3, 5, 7):
    asf = cv2.morphologyEx(asf, cv2.MORPH_CLOSE, ellipse(k))
    asf = cv2.morphologyEx(asf, cv2.MORPH_OPEN, ellipse(k))

outline = cv2.morphologyEx(asf, cv2.MORPH_GRADIENT, k_cross)
print(f"error: noisy {error(noisy):.1f}%  open7+close7 {error(naive):.1f}%  ASF {error(asf):.2f}%")

error: noisy 13.7%  open7+close7 36.0%  ASF 0.72%

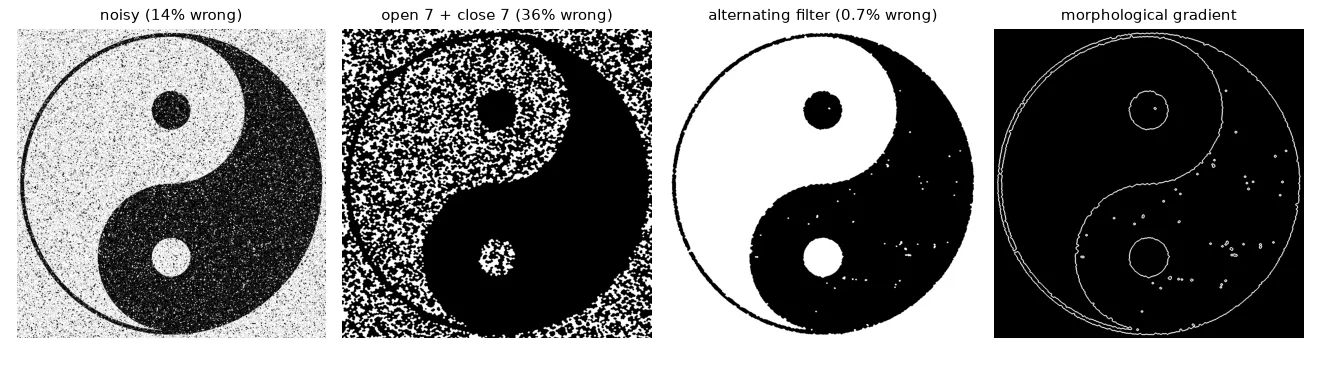

One big opening + closing triples the error. The alternating filter brings it from 13.7% to 0.7% wrong pixels, and its morphological gradient is a clean outline.

Making a QR code readable#

A QR code is just black and white squares, so noise inside a module can be removed with a kernel smaller than a module. To measure success, we ask OpenCV's QR decoder:

qr = U.imread("morphology/QR_code.png", cv2.IMREAD_GRAYSCALE)
detector = cv2.QRCodeDetector()


def decode(img):
    # QR readers need a white "quiet zone" around the code
    padded = cv2.copyMakeBorder(img, 40, 40, 40, 40, cv2.BORDER_CONSTANT, value=255)
    text, points, _ = detector.detectAndDecode(padded)
    return text or None


k3 = cv2.getStructuringElement(cv2.MORPH_CROSS, (3, 3))
qr_bin = cv2.threshold(qr, 0, 255, cv2.THRESH_BINARY + cv2.THRESH_OTSU)[1]
qr_open = cv2.morphologyEx(qr_bin, cv2.MORPH_OPEN, k3)       # white noise inside black modules
qr_clean = cv2.morphologyEx(qr_open, cv2.MORPH_CLOSE, k3)    # black noise inside white modules
for name, im in [("input", qr), ("cleaned", qr_clean)]:
    print(f"QR {name:<8} decoded:", decode(im) is not None)

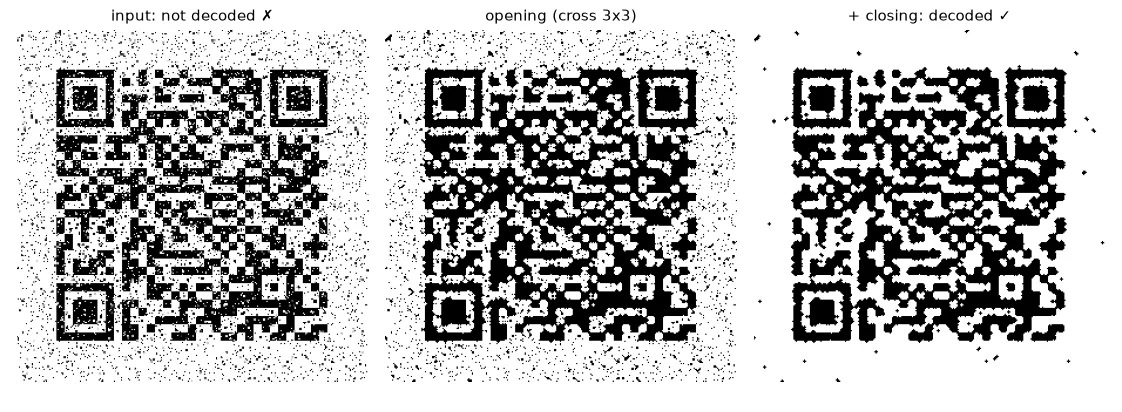

The noisy code cannot be decoded. After an opening and a closing with a 3×3 cross, `cv2.QRCodeDetector` reads it.

Two practical lessons: the kernel must be smaller than one module (a 5×5 kernel starts eating the thin black lines), and decoders need a white quiet zone around the code — I had to pad the image with a white border before it worked.

Hit-or-miss: finding patterns#

Hit-or-miss looks for an exact local configuration. The kernel has three values: \(1\) = must be white, \(-1\) = must be black, \(0\) = don't care. It is two erosions: the foreground eroded by the "1" cells AND the background eroded by the "−1" cells.

def hit_or_miss(img, kernel):
    """kernel: 1 = must be white, -1 = must be black, 0 = don't care."""
    fg = img > 0
    hits = erode(fg.astype(np.uint8), (kernel == 1).astype(np.uint8)) > 0
    misses = erode((~fg).astype(np.uint8), (kernel == -1).astype(np.uint8)) > 0
    return (hits & misses).astype(np.uint8) * 255


corner = np.array([[0, -1, -1],
                   [1, 1, -1],
                   [0, 1, 0]])                     # top-right outer corner of a white shape
shapes = np.zeros((60, 80), np.uint8)
cv2.rectangle(shapes, (10, 10), (30, 40), 255, -1)
cv2.rectangle(shapes, (45, 20), (70, 50), 255, -1)
found_mine = hit_or_miss(shapes, corner)
found_cv = cv2.morphologyEx(shapes, cv2.MORPH_HITMISS, corner)

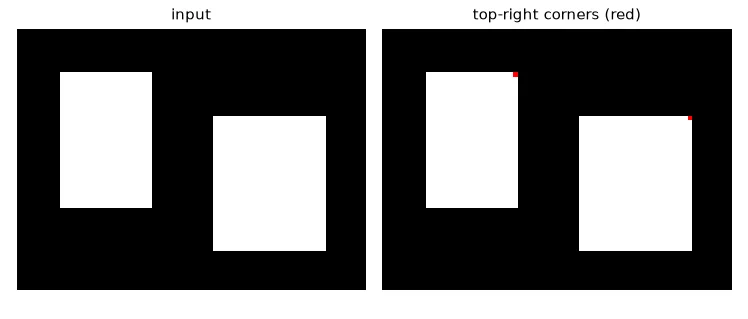

The kernel describes a top-right outer corner; exactly the two top-right corners are found. Lesson 19 uses the same tool to find the endings of fingerprint ridges.

Counting objects#

After cleaning, connectedComponentsWithStats labels every white blob and returns its area, bounding box and centroid — the bridge between pixels and objects:

blobs = cv2.morphologyEx(noisy, cv2.MORPH_OPEN, k_cross)
n, labels, stats, centroids = cv2.connectedComponentsWithStats(blobs)
big = [i for i in range(1, n) if stats[i, cv2.CC_STAT_AREA] > 500]     # label 0 is the background
print(f"{n - 1} white components, {len(big)} larger than 500 px")

Exercises#

Find the smallest square kernel for which the QR code stops being readable. Relate it to the module size in pixels.
Write hit_or_miss kernels for the four outer corners (use np.rot90) and count the corners of every rectangle in an image.
Use the morphological gradient of the cleaned yin-yang and cv2.findContours to measure the perimeter of each half.
