12 · Keypoints and descriptors — FAST, ORB and SIFT

Detector + descriptor#

Matching two images of the same scene from different viewpoints needs two things:

a detector that finds the same physical points in both images (repeatability), and
a descriptor, a vector that summarises the patch around each point so that the same point gives similar vectors, even if the image is rotated, scaled, blurred or darker.

ORB (Rublee et al., 2011) — "Oriented FAST and Rotated BRIEF" — is the fast, free, binary answer, and the feature behind ORB-SLAM (lesson 17). We build a small version of it.

FAST#

FAST looks at the 16 pixels on a circle of radius 3 around a candidate $p$. It is a corner if $n$ contiguous circle pixels are all brighter than $I_p + t$ or all darker than $I_p - t$ ($n = 9$ for FAST-9, 12 in the original paper).

# Bresenham circle of radius 3 around the candidate pixel: 16 (dx, dy) offsets, in order.
CIRCLE = [(0, -3), (1, -3), (2, -2), (3, -1), (3, 0), (3, 1), (2, 2), (1, 3),
          (0, 3), (-1, 3), (-2, 2), (-3, 1), (-3, 0), (-3, -1), (-2, -2), (-1, -3)]

The original version of my implementation tested each pixel in a Python loop, which takes seconds per image. Vectorised, the 16 circle pixels become 16 shifted copies of the image, and "$n$ contiguous" becomes an AND over $n$ consecutive copies, for each of the 16 starting positions (wrapping around):

def fast_score_map(img, t=20, n=9):
    """FAST-n segment test for every pixel at once.

    A pixel p is a corner if n *contiguous* circle pixels are all brighter than p + t
    or all darker than p - t. Returns a score map (0 = not a corner).
    """
    f = img.astype(np.int16)
    h, w = f.shape
    pad = np.pad(f, 3, mode="edge")
    ring = np.stack([pad[3 + dy:3 + dy + h, 3 + dx:3 + dx + w] for dx, dy in CIRCLE])  # 16 x h x w
    brighter = ring > f + t
    darker = ring < f - t

    def has_arc(flags):
        # circular: does any run of n consecutive True exist among the 16?
        ext = np.concatenate([flags, flags[:n - 1]])               # wrap around
        found = np.zeros((h, w), bool)
        for start in range(16):
            found |= np.all(ext[start:start + n], axis=0)
        return found

    corner = has_arc(brighter) | has_arc(darker)
    score = np.abs(ring - f).sum(axis=0)          # how strongly the ring differs from p
    score[~corner] = 0
    score[:3], score[-3:], score[:, :3], score[:, -3:] = 0, 0, 0, 0
    return score


def nms(score, radius=3):
    """Keep pixels that are the maximum of their (2r+1)^2 neighbourhood."""
    local_max = cv2.dilate(score.astype(np.float32), np.ones((2 * radius + 1,) * 2))
    ys, xs = np.nonzero((score > 0) & (score >= local_max))
    return np.stack([xs, ys], axis=1)

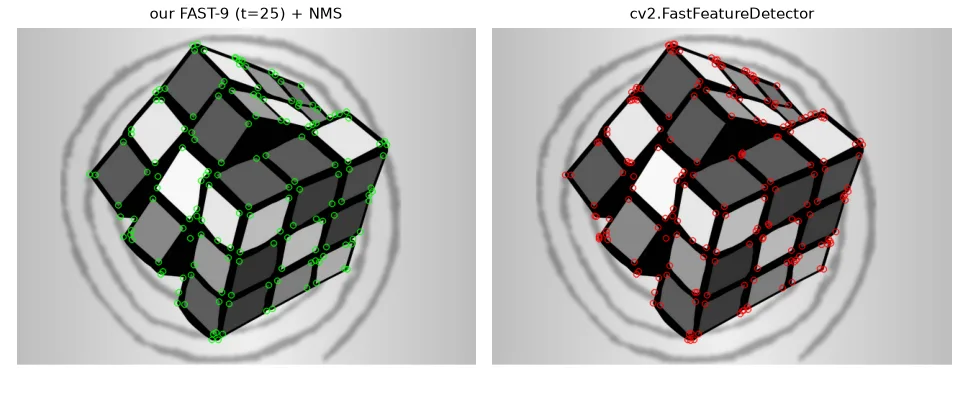

Our FAST-9 (153 keypoints) and OpenCV's (182) on the same threshold. The difference comes from the score used for NMS: OpenCV uses the largest $t$ for which the point is still a corner.

Orientation: the intensity centroid#

FAST says where but not which way. ORB computes the centroid of the patch intensities with image moments; the vector from the keypoint to the centroid defines its angle:

\[m_{pq} = \sum_{x, y} x^p y^q I(x, y), \qquad \theta = \operatorname{atan2}(m_{01}, m_{10})\]

def orientation(img, x, y, radius=15):
    """Intensity centroid (oFAST): the angle from the keypoint to the patch's centre of mass."""
    patch = img[y - radius:y + radius + 1, x - radius:x + radius + 1].astype(np.float32)
    dy, dx = np.mgrid[-radius:radius + 1, -radius:radius + 1]
    disk = dx ** 2 + dy ** 2 <= radius ** 2           # circular patch: rotation invariant
    m10 = np.sum(dx * patch * disk)
    m01 = np.sum(dy * patch * disk)
    return np.arctan2(m01, m10)

The patch is a disc, so rotating the image rotates the centroid by the same angle.

BRIEF: a descriptor made of comparisons#

BRIEF picks 256 random pairs of points $(\mathbf{p}_i, \mathbf{q}_i)$ inside the (smoothed) patch, fixed once and for all, and sets bit $i$ to $[I(\mathbf{p}_i) < I(\mathbf{q}_i)]$. The descriptor is 32 bytes, and two descriptors are compared with the Hamming distance — the number of different bits, a XOR and a popcount. That is why ORB matching is so fast.

"Steered" BRIEF rotates the sampling pattern by the keypoint's angle before sampling:

rng = np.random.default_rng(42)
PAIRS = np.clip(rng.normal(0, 31 / 5, size=(256, 4)), -13, 13).round()   # (x1, y1, x2, y2) per bit


def brief(img, x, y, angle=None):
    """256-bit binary descriptor: bit i = I(p1_i) < I(p2_i), on a smoothed image.
    With an angle, the sampling pattern is rotated first ("steered" BRIEF, as in ORB)."""
    pts = PAIRS.reshape(-1, 2)
    if angle is not None:
        c, s = np.cos(angle), np.sin(angle)
        pts = pts @ np.array([[c, s], [-s, c]])        # rotate every sample point
    pts = np.round(pts).astype(int)
    vals = img[y + pts[:, 1], x + pts[:, 0]].reshape(-1, 2)
    bits = (vals[:, 0] < vals[:, 1]).astype(np.uint8)
    return np.packbits(bits)                           # 32 bytes


def hamming(a, b):
    return int(np.unpackbits(a ^ b).sum())             # number of different bits

Does the orientation matter? Measure it#

We rotate an image by a known 50° so that we can check every match against the ground truth:

a = U.imread("features/bat.jpg", cv2.IMREAD_GRAYSCALE)
h, w = a.shape
M = cv2.getRotationMatrix2D((w / 2, h / 2), 50, 1.0)    # known ground truth: 50 degree rotation
b = cv2.warpAffine(a, M, (w, h), borderMode=cv2.BORDER_REFLECT)


def precision(pa, pb, matches, tol=3.0):
    """Fraction of matches that land where the known rotation says they should."""
    if not matches:
        return 0.0
    src = np.array([pa[i] for i, _ in matches], np.float32)
    dst = np.array([pb[j] for _, j in matches], np.float32)
    predicted = src @ M[:, :2].T + M[:, 2]
    return float(np.mean(np.linalg.norm(predicted - dst, axis=1) < tol))

mini-ORB steer=False: 4 mutual matches, 0% correct
mini-ORB steer=True: 98 mutual matches, 91% correct

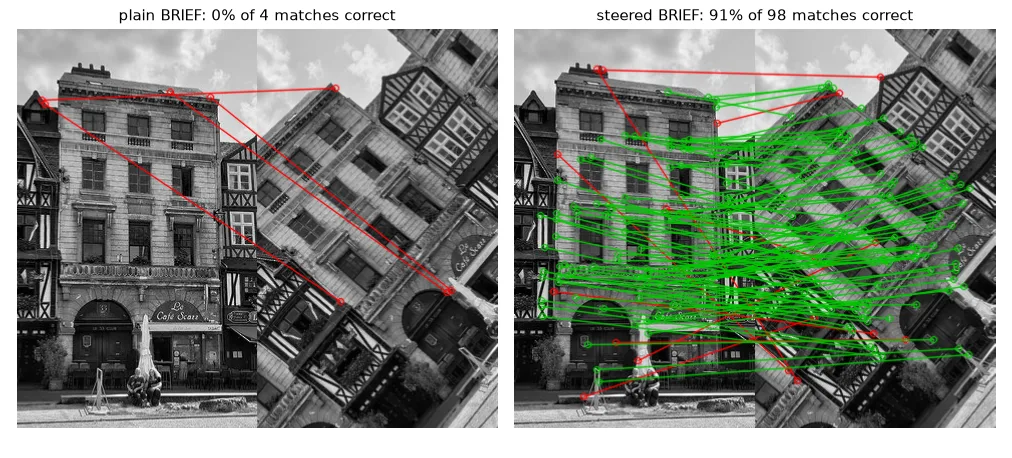

Correct matches in green, wrong ones in red. Without orientation, the bits compare different pixels after rotation and nothing matches. Steered, 91% of the matches are right.

ORB in OpenCV#

orb = cv2.ORB_create(nfeatures=1000)
bf = cv2.BFMatcher(cv2.NORM_HAMMING, crossCheck=True)   # Hamming: XOR + popcount


def orb_matches(img1, img2):
    kp1, des1 = orb.detectAndCompute(img1, None)
    kp2, des2 = orb.detectAndCompute(img2, None)
    matches = sorted(bf.match(des1, des2), key=lambda m: m.distance)  # best first
    return kp1, kp2, matches

crossCheck=True keeps a match only if A's best match is B and B's best match is A. Sorting by distance puts the most reliable first.

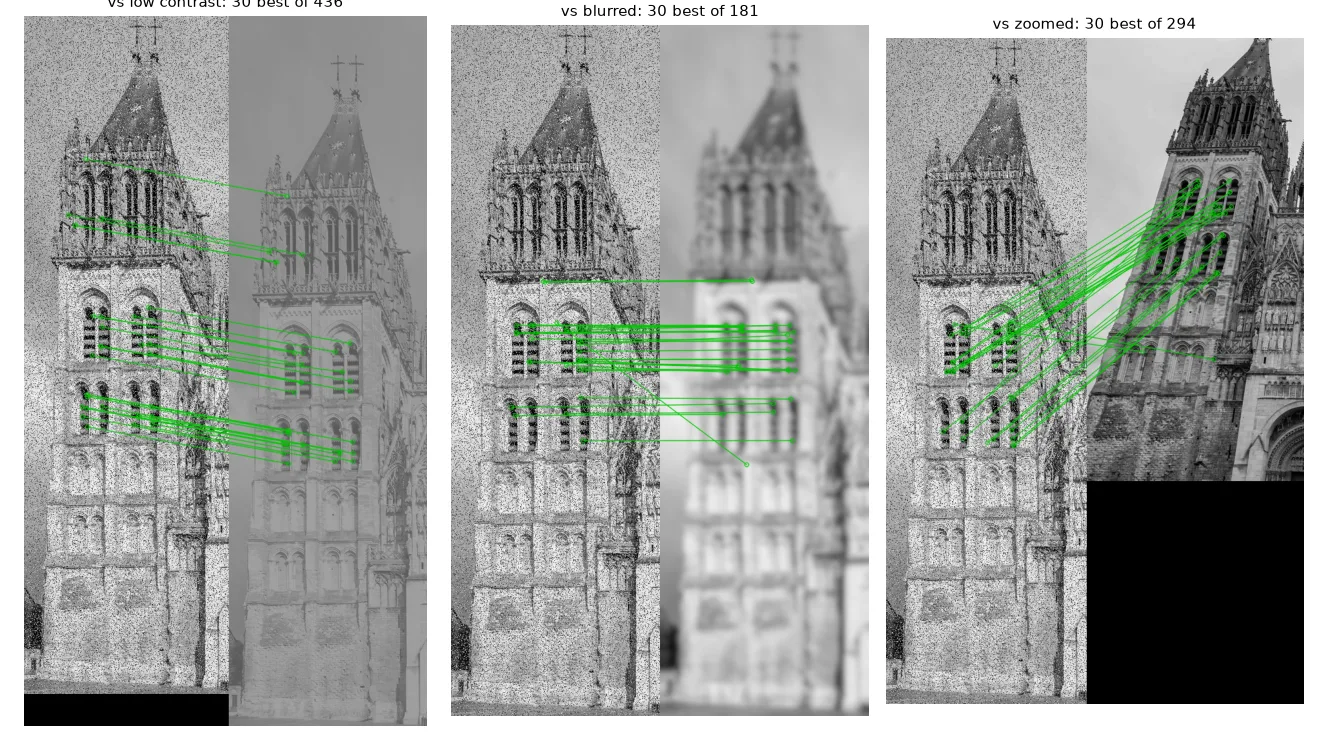

ORB between a noisy tower photo and degraded versions. Contrast changes barely matter (binary tests only compare pixels). Blur and zoom are harder: the number of matches with distance < 40 drops from 236 (low contrast) to 31 (blur) and 13 (zoom).

SIFT and the ratio test#

SIFT (Lowe, 2004) detects blobs as extrema of a difference of Gaussians across scales (lesson 06) — so it knows each keypoint's scale — and describes them with 128 floats: histograms of gradient orientations in a 4×4 grid. It is slower than ORB but more distinctive and robust to scale.

With float descriptors we use the Euclidean distance and a FLANN k-d tree. Instead of a fixed threshold, Lowe's ratio test compares the best match with the second best: a correct match is much closer than any other candidate, while an ambiguous one (a repeated window, a texture) is not.

sift = cv2.SIFT_create()
flann = cv2.FlannBasedMatcher(dict(algorithm=1, trees=5), dict(checks=50))   # KD-tree


def sift_matches(img1, img2, ratio=0.75):
    kp1, des1 = sift.detectAndCompute(img1, None)
    kp2, des2 = sift.detectAndCompute(img2, None)
    knn = flann.knnMatch(des1, des2, k=2)          # two nearest neighbours per descriptor
    # Lowe's ratio test: keep a match only if it is clearly better than the runner-up
    good = [m for m, n in knn if m.distance < ratio * n.distance]
    return kp1, kp2, good

SIFT box vs scene: 1888 nearest neighbours, 114 survive the ratio test

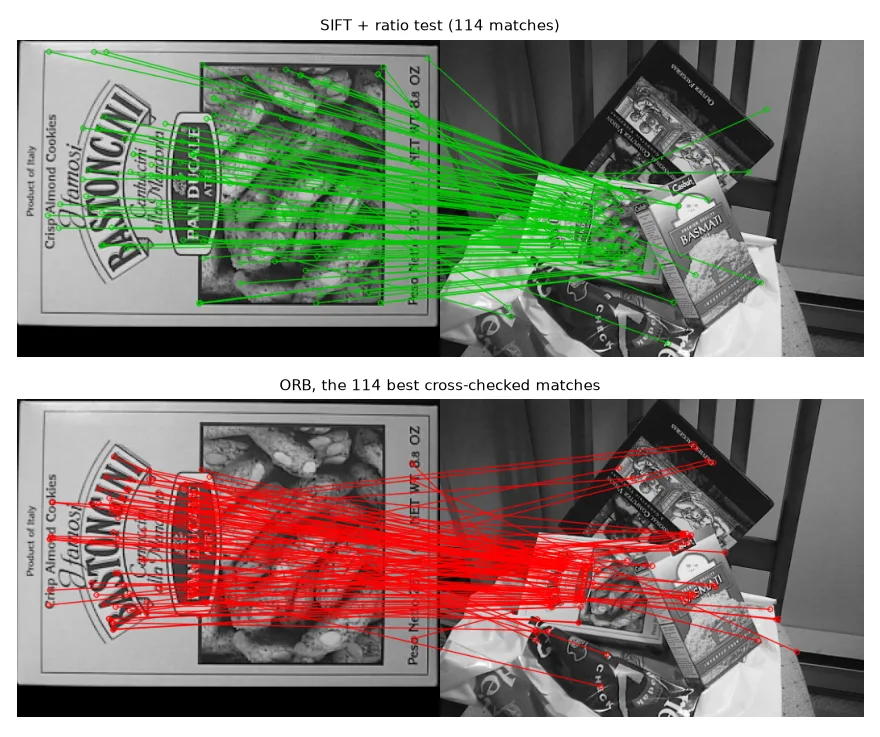

Finding a cookie box in a cluttered scene. SIFT + ratio test (top) gives mostly consistent matches. ORB's best cross-checked matches (bottom) struggle: the box is much bigger in its reference image than in the scene.

Matches are not proof#

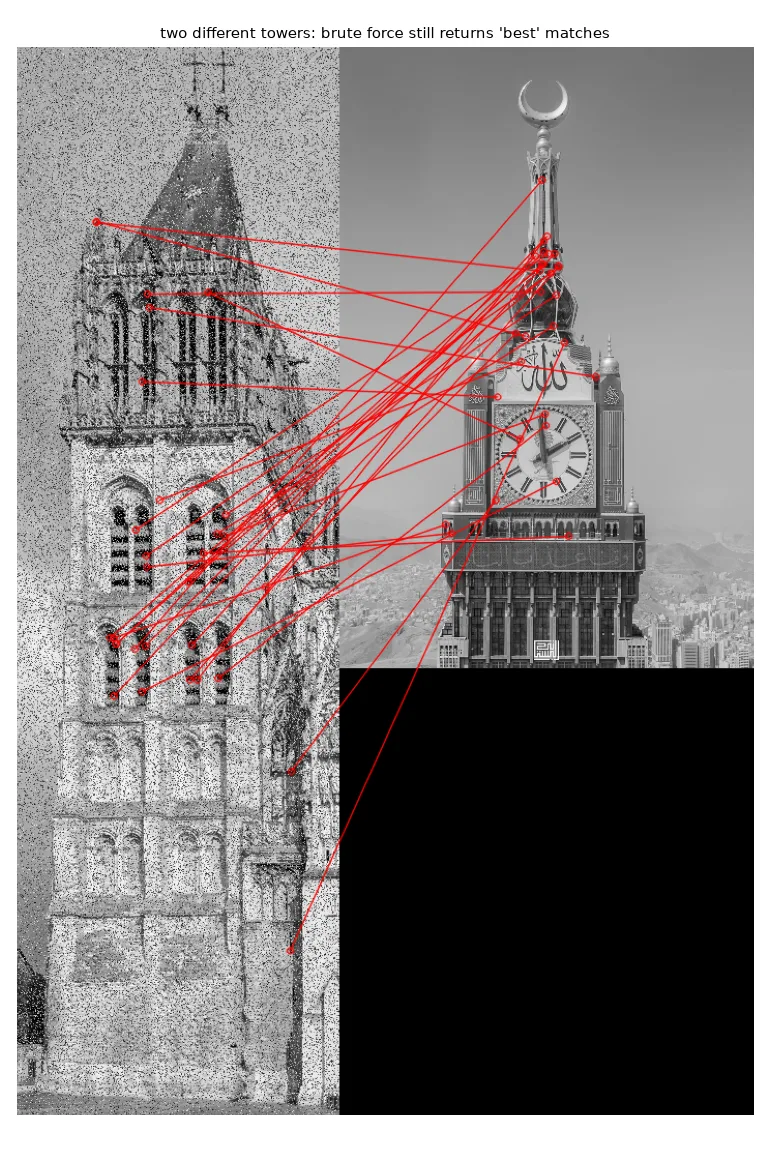

Two different towers. Brute force always returns a "best" match for every descriptor: 283 cross-checked matches between unrelated buildings.

Descriptor distance alone cannot tell you whether two images show the same thing. The missing ingredient is geometry: correct matches must all agree on one transformation between the images. That is the next lesson.

Exercises#

Plot the fraction of correct matches of steered vs plain BRIEF for rotations from 0° to 180°.
Add the ratio test to the ORB matcher (bf = cv2.BFMatcher(cv2.NORM_HAMMING) + knnMatch(k=2)). How many of the 283 false tower matches survive?
Replace the random BRIEF pairs by pairs sampled from a uniform distribution. Does accuracy change?
